ChatGPT writes MicroPython code for Raspberry Pi PicoW

See how ChatGPT writes MicroPython code for Raspberry Pi Pico W

ChatGPT is a language model developed by OpenAI, which is capable of generating text based on a given prompt.

Test text for ChatGPT:

Write code in micropython Thonny for Raspberry pi Pico W with sensor BME280 and web server print IP, with homepage for temperature, pressure and humidity.


ChatGPT code:

from machine import I2C, Pin

import bme280 import network import usocket as socket i2c = I2C(0,scl=Pin(1), sda=Pin(0)) # put the right pins bme = bme280.BME280(i2c=i2c) def get_temp(): return bme.temperature def get_pressure(): return bme.pressure def get_humidity(): return bme.humidity def get_html(): html = """<html> <head> <title>Raspberry Pi Pico W with BME280</title> </head> <body> <h1>Temperature: {} C</h1> <h1>Pressure: {} hPa</h1> <h1>Humidity: {} %</h1> </body> </html> """.format(get_temp(), get_pressure(), get_humidity()) return html def main(): sta_if = network.WLAN(network.STA_IF) sta_if.active(True) sta_if.connect("<SSID>", "<Password>")

# Replace <SSID> and <PASSWORD> with your own Wi-Fi credentials.

print("Connected to network with IP: {}".format(sta_if.ifconfig()[0])) s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) s.bind(("", 80)) s.listen(5) while True: conn, addr = s.accept() print("Got a connection from %s" % str(addr)) request = conn.recv(1024) request = str(request) print("Content = %s" % request) response = get_html() conn.send("HTTP/1.1 200 OK\n") conn.send("Content-Type: text/html\n") conn.send("Connection: close\n\n") conn.sendall(response) conn.close() main()

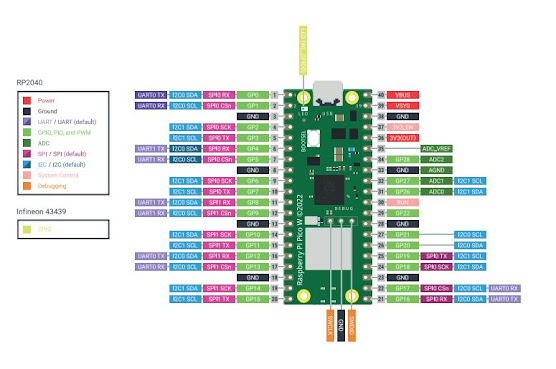

Raspberry Pi Pico W Pinouts

I2C communication

GO0 = SDA GP1 = SCL
GND and 3V3(OUT)



Demo project video:
